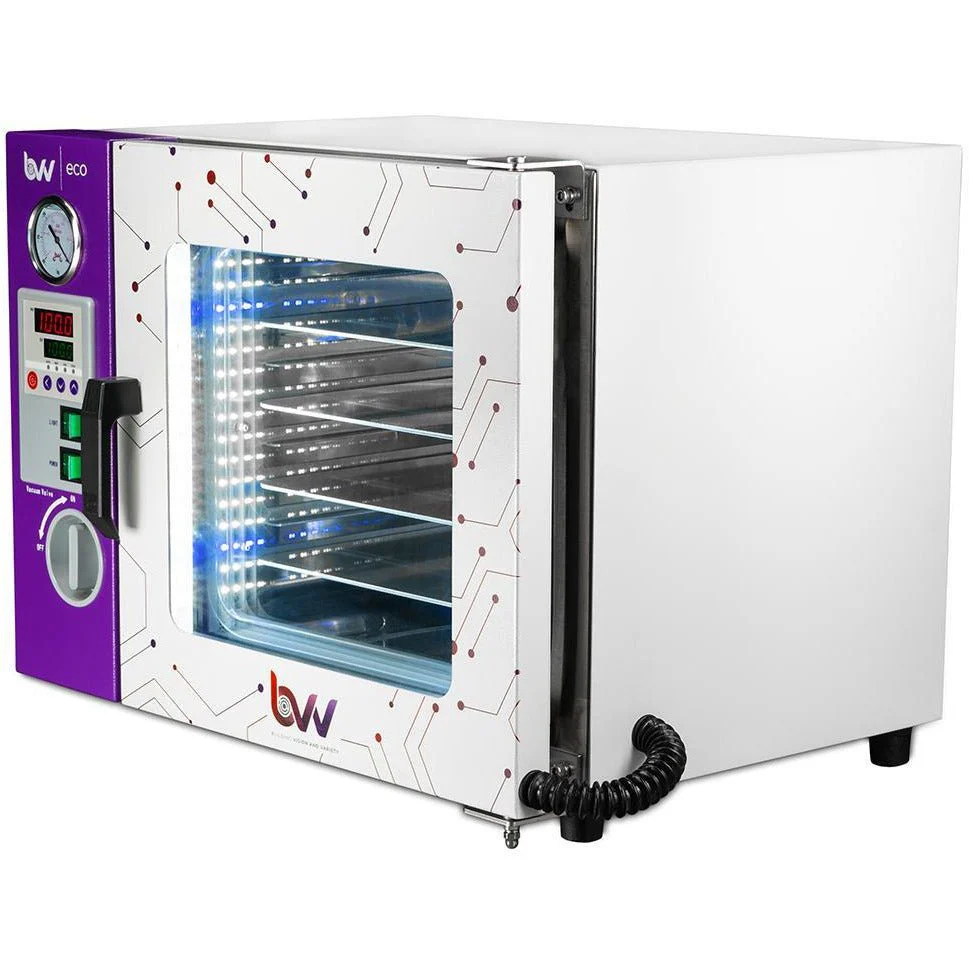

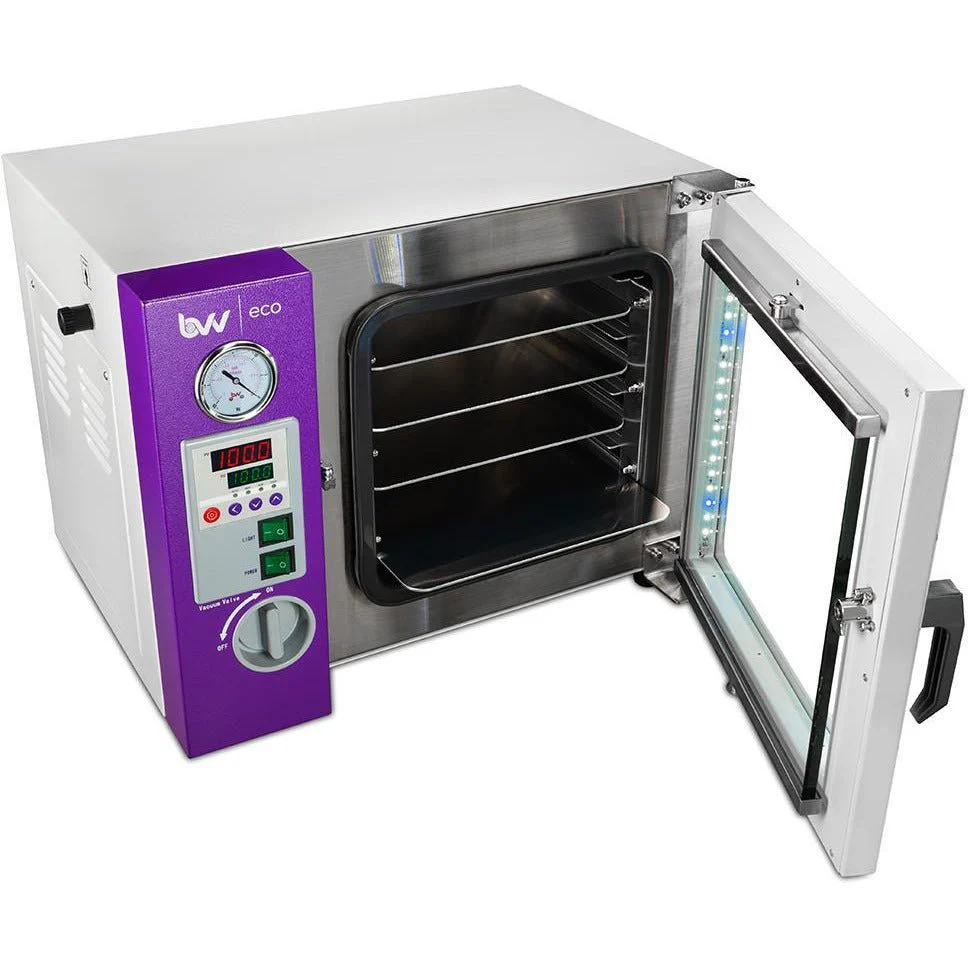

ECO Vacuum Oven
For the easy and efficient degassing and purging light hydrocarbon solvents, look no further than our purpose-built ECO vacuum oven with LED display. Using cold-boiling, this oven applies gentle heat under reduced pressure to expedite solvent degassing while preserving color, aroma, and overall quality. The ECO vacuum oven has four (4) spacious shelves with optimal heat distribution and perfect uniformity across each shelf surface. It’s low consumption, high-throughput, and reliable, so you’ll spend less money and time getting the job done.
This oven comes with a touchscreen and LEDs for easy operation, and a two-year parts and labor warranty.
| Category | Specification |
|---|---|
| Electrical | 120 VAC / 60Hz / 700W / USA Plug |
| Internal Chamber | Material: Polished Stainless Steel Dimensions (LxWxH): 11.5" x 11.75" x 10.75" |
| Temperature Control | Four Wall Heating LED PID Controller Temperature Range - 212F Temperature Stability: +/- 1.8F or 1C Automatic Over Shoot Shut Down Over Temp Alarm |
| Vacuum Gauge | Ranging From -1inHg to -30inHg |
| Maximum Vacuum Level | -29.9inHg / 75.4 cmHg / -1 MPa |
| Shelves | Up to 8 Sliding Shelves at one Time Reinforced Steel with sides to secure product Shelf Capacity(Area): 129in^2 Total Shelf Capacity: 1034 in^2 or 7.2ft^2 Dimensions (LxW): 11-3/8" x 11-3/16" |
| Door | 1/2" Tempered Glass Window Integrated LED's Window Dimensions (LxH): 11.75" x 11" Replaceable Gasket Material: Silicone |
| Weight & Dimensions | Outside Dimensions (LxWxH): 24.5" x 22" x 21" Weight: 115lbs |
| Compliance | CE Listing Recognized ISO 9001:2008 ISO 13485" 2003 Manufactured in Acc. w/ Q/TIWY7-2004 IEC68-2-3 |
For warranty information, please refer to the manufacturer's official website or contact our customer support team.
