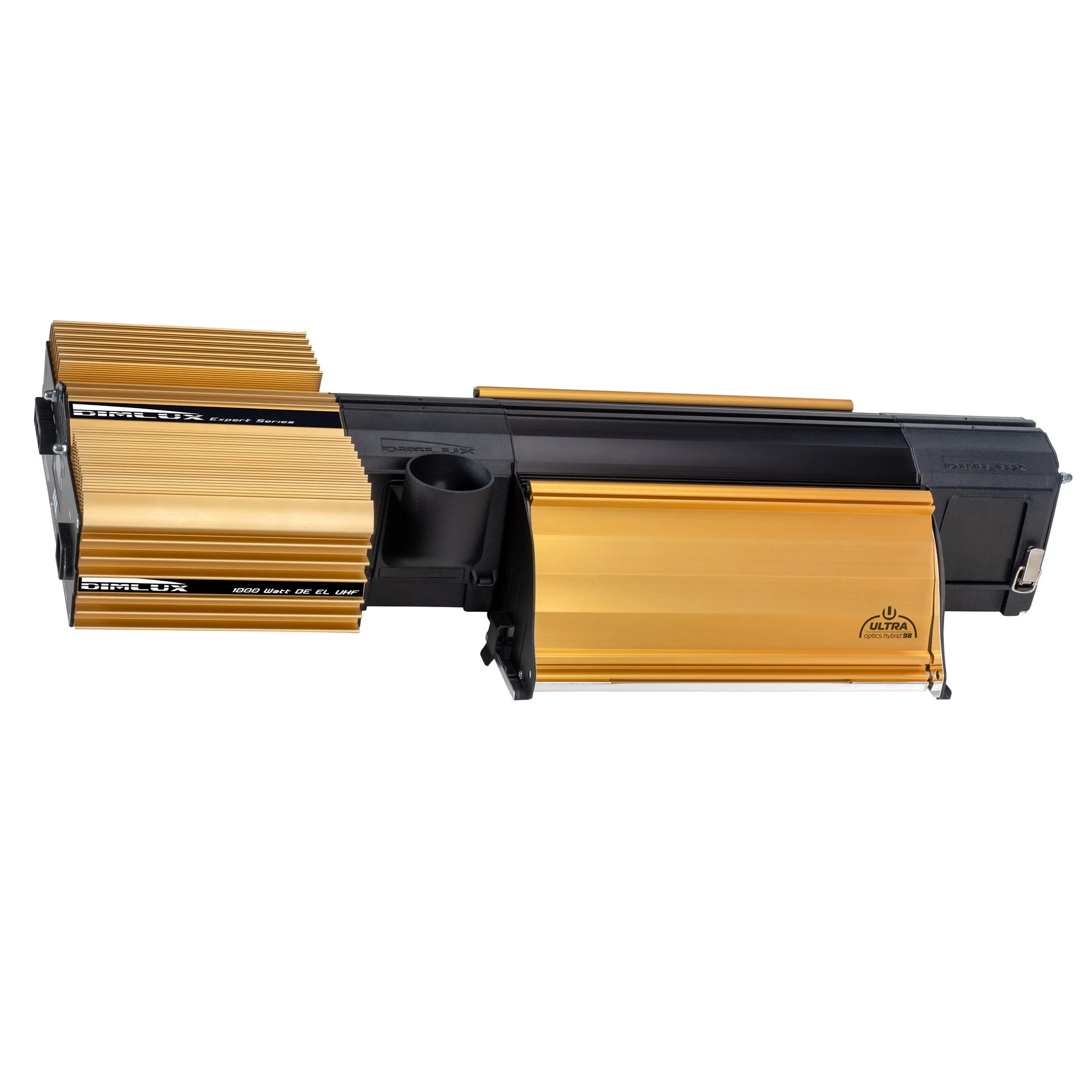

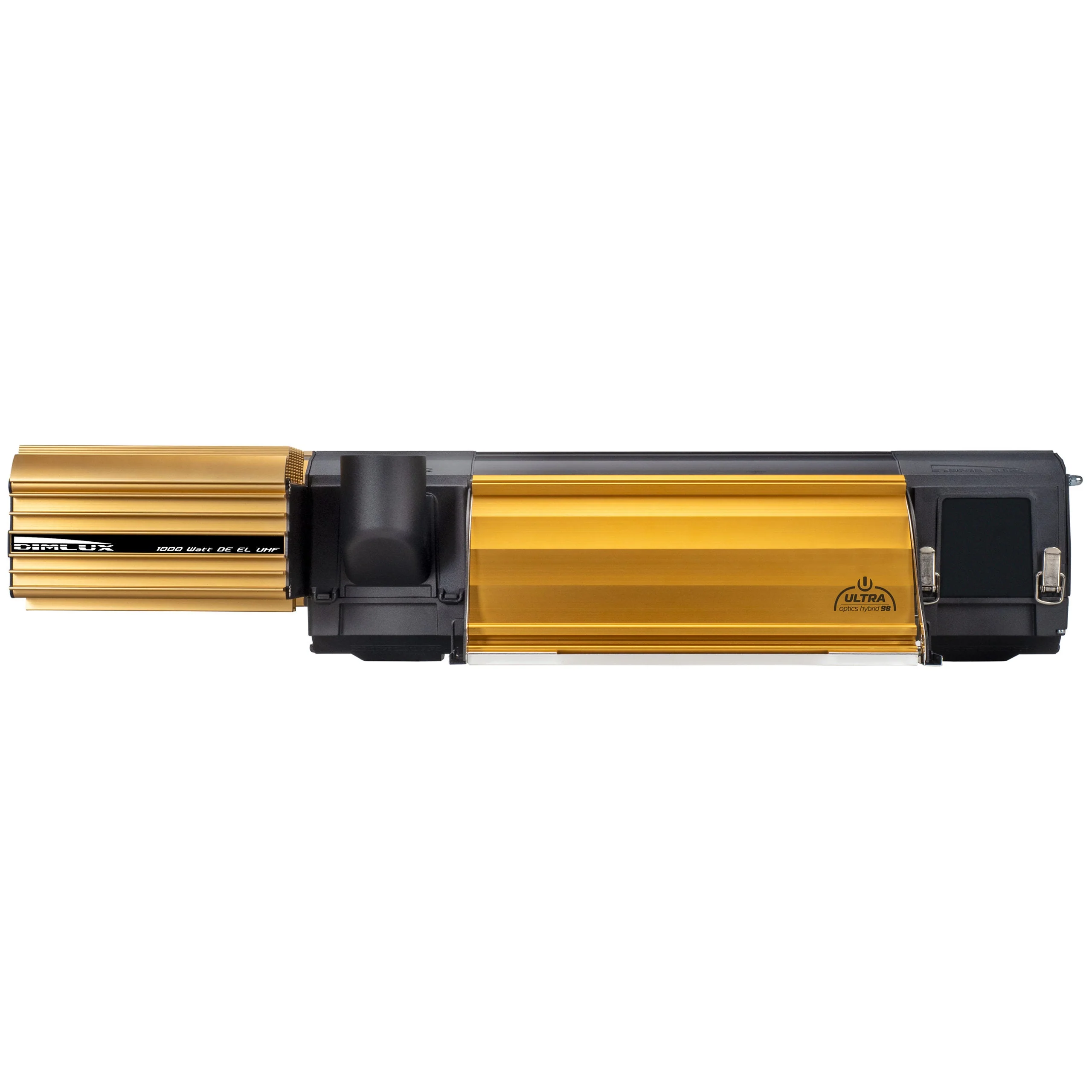

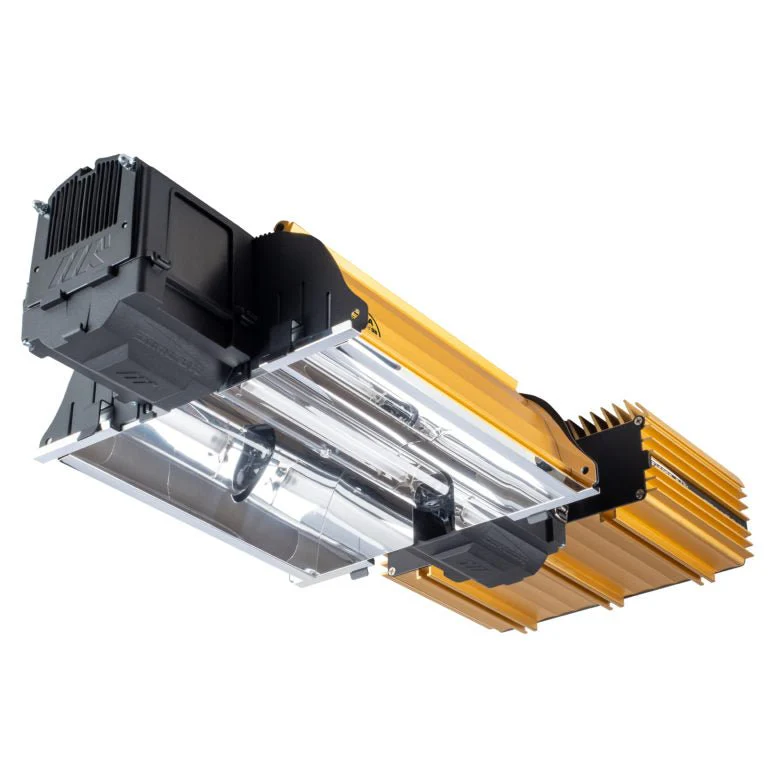

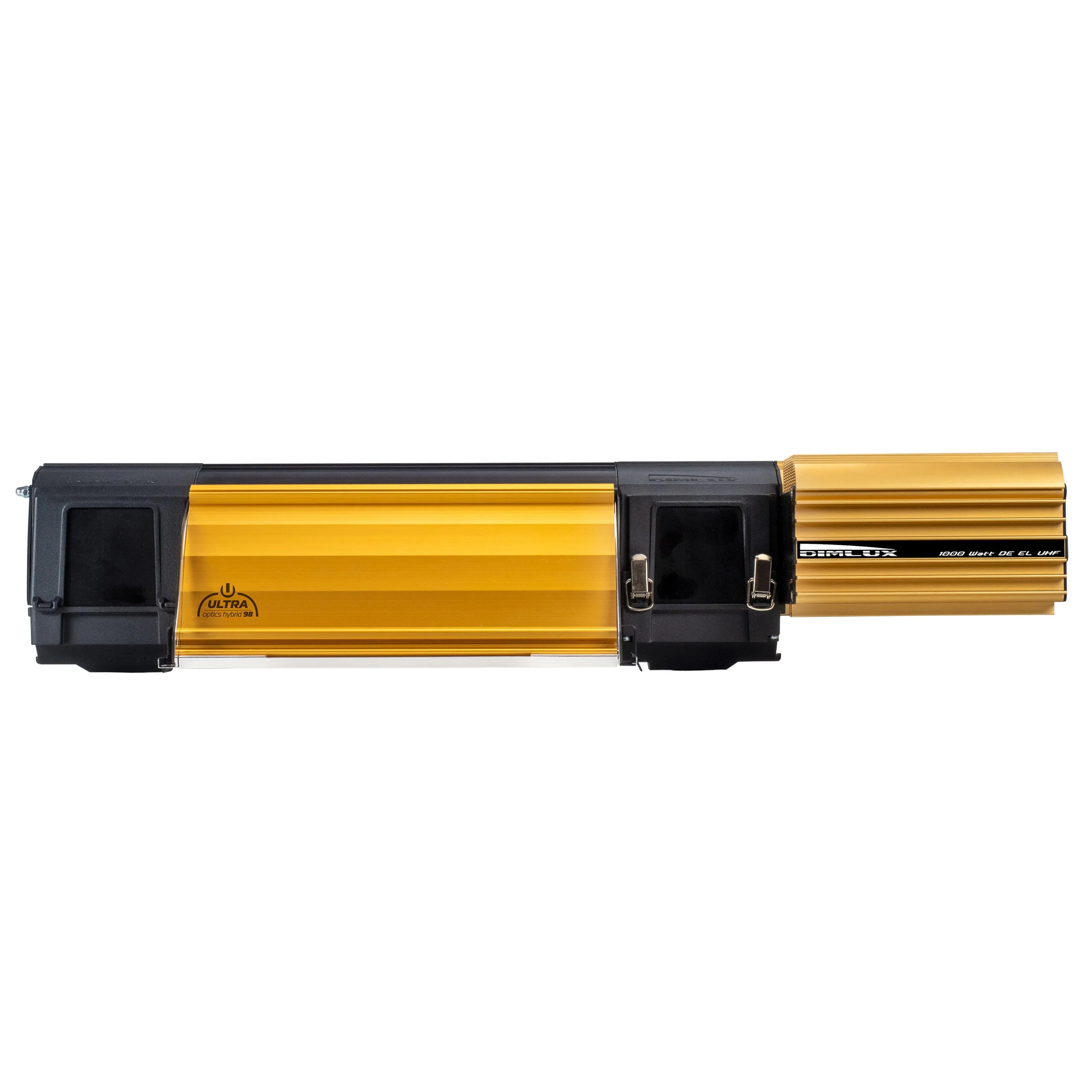

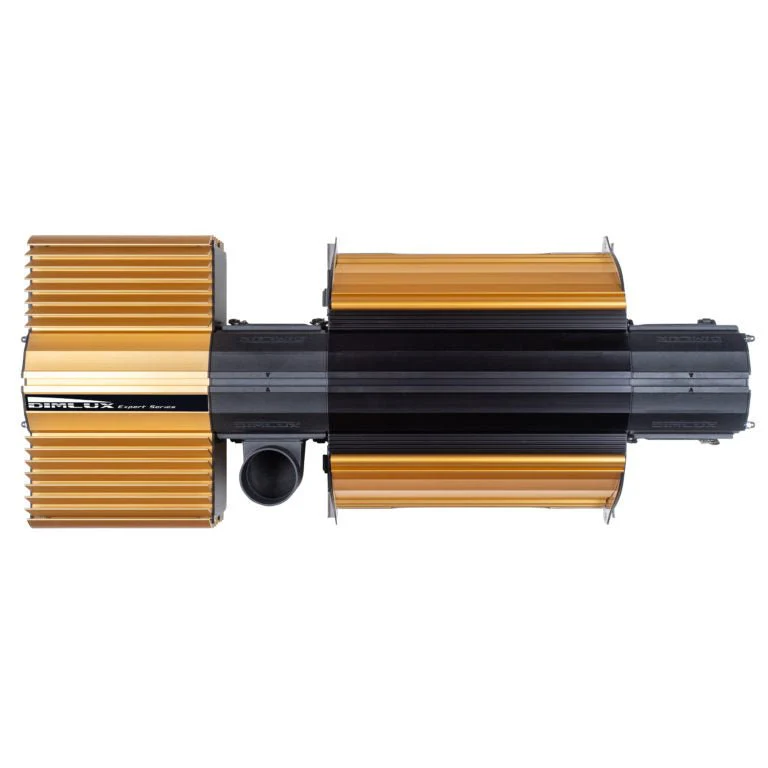

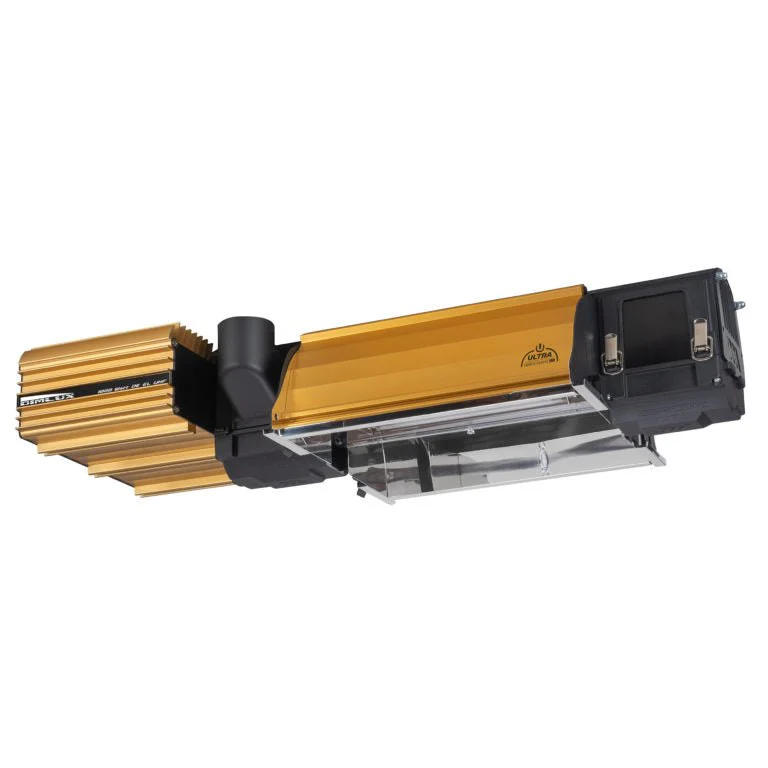

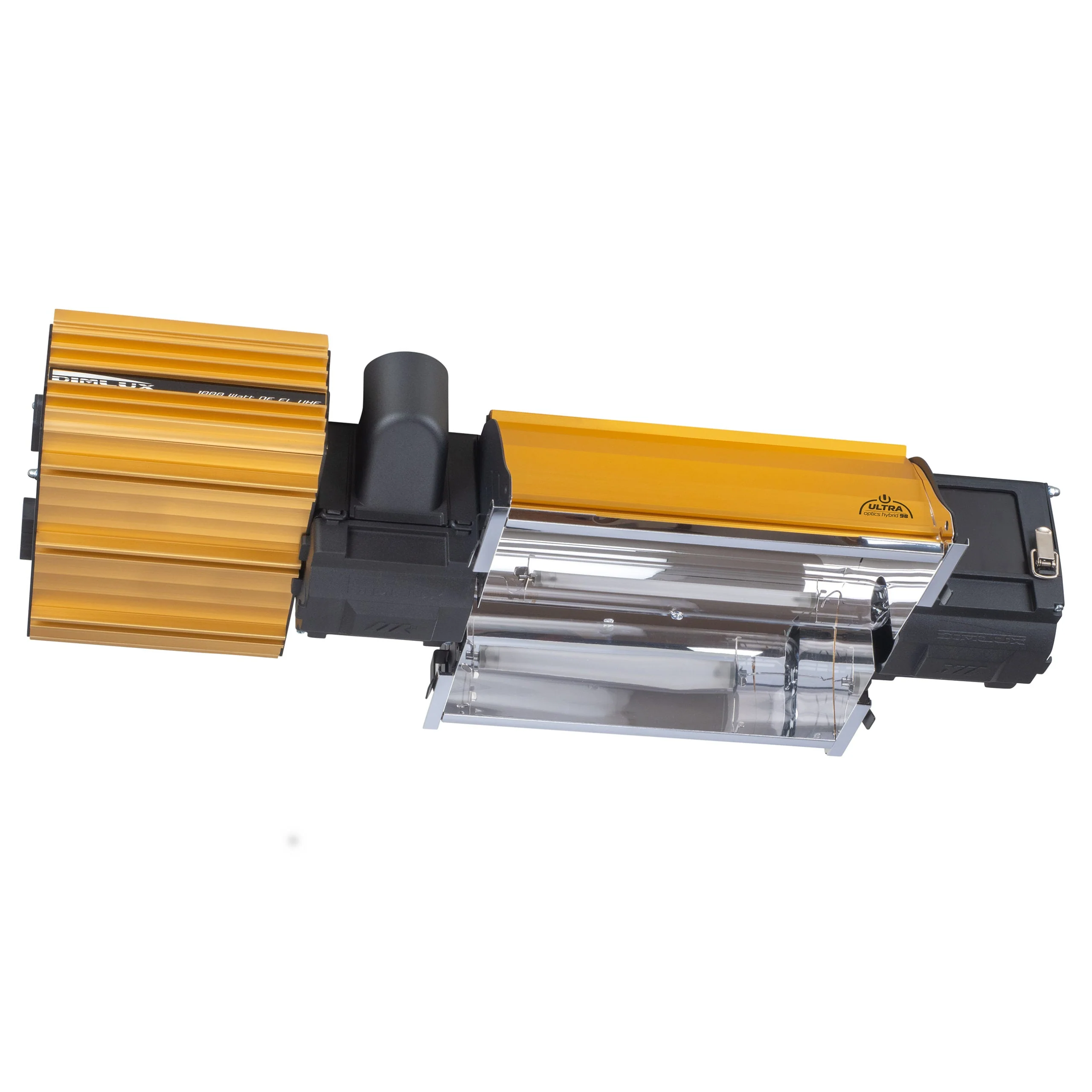

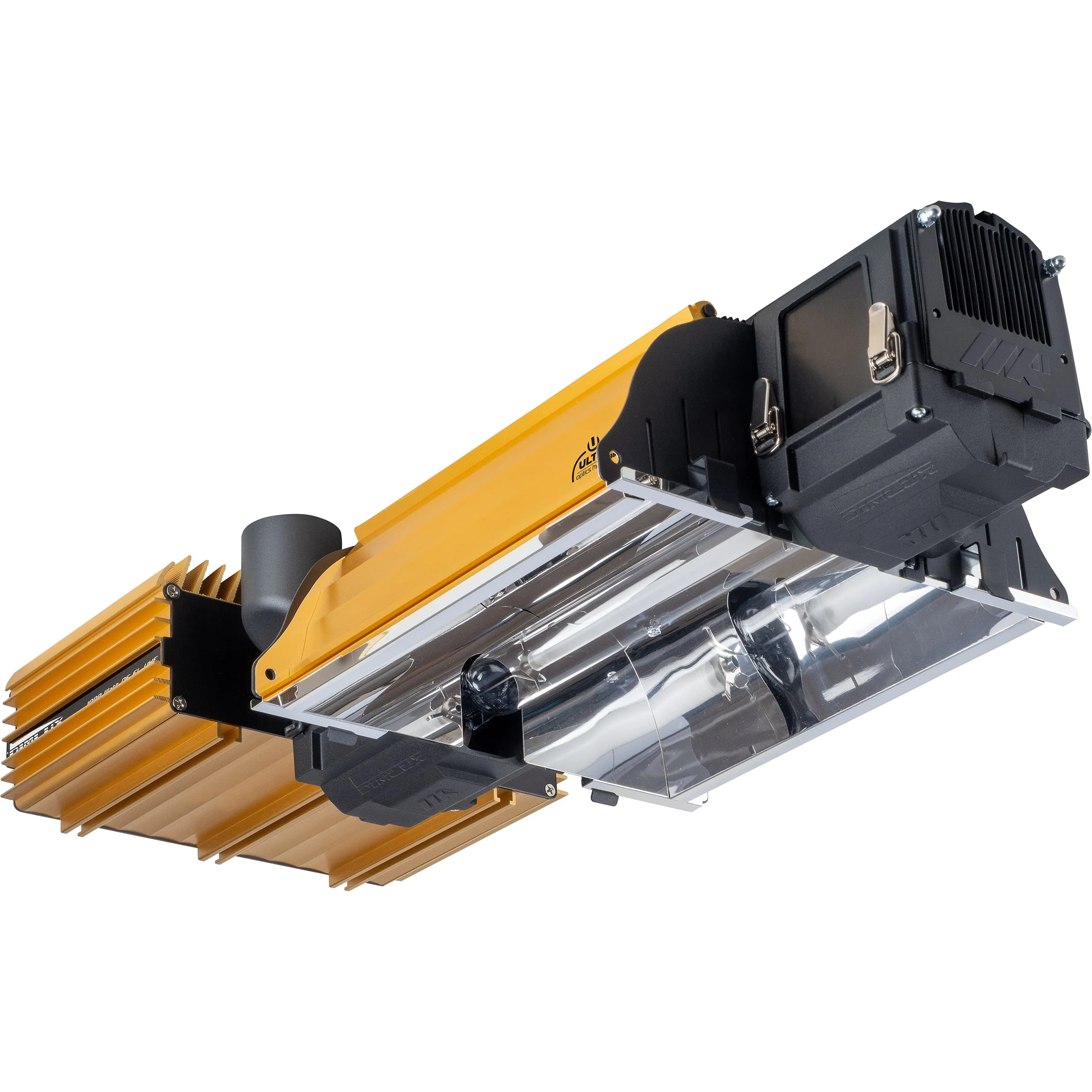

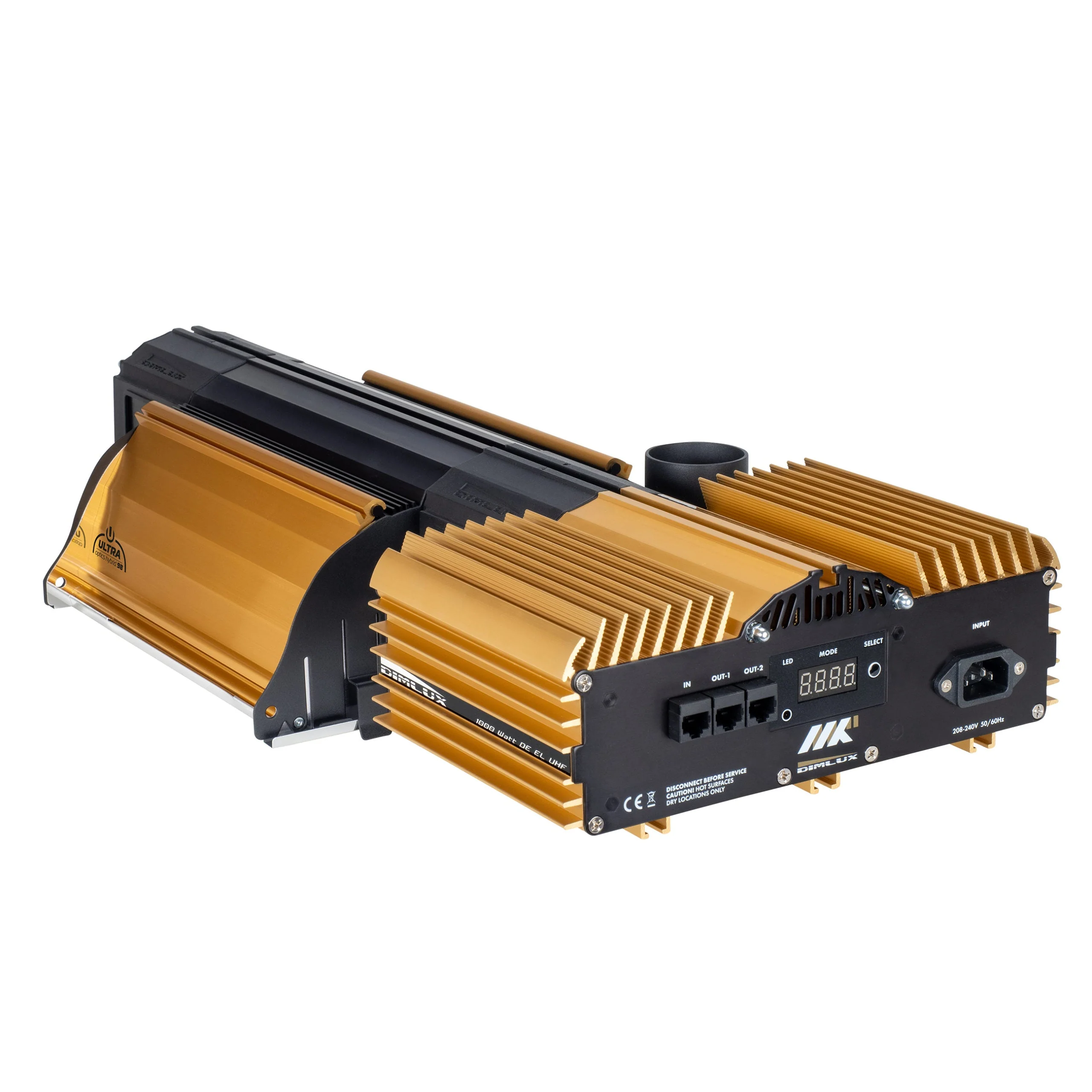

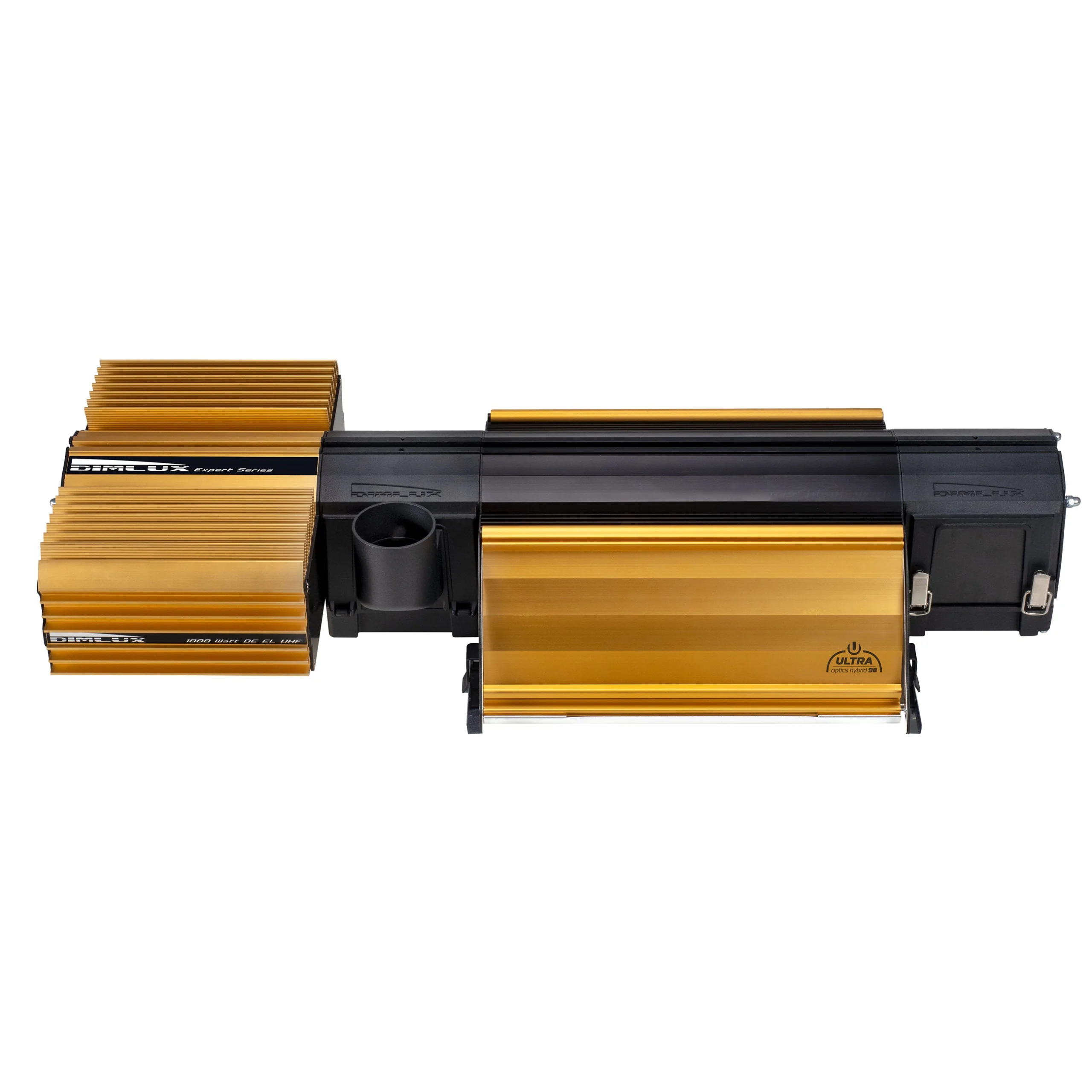

Dimlux Expert Series MKII 1000W DE EL UHF

The Dimlux Expert Series MKII 1000W DE EL UHF is a premium, professional-grade horticultural HID grow light fixture engineered for serious indoor growers who demand maximum light output, high efficiency, and precise control throughout the plant growth cycle. Designed and manufactured by Dimlux in the Netherlands, this fixture combines advanced ballast technology, a high-efficiency reflector, and a robust DE (double-ended) EL lamp to deliver exceptional performance for both vegetative and flowering phases of plant growth.

💡 Powerful Lighting Performance

• Equipped with a 1000 W DE EL HPS lamp, the fixture provides intense usable light for vigorous growth.

• With the UHF (Ultra High Frequency) ballast and boost function, the light output can be increased up to 1200 W, delivering up to ~2,528 µmol/s PPF — one of the highest outputs possible from a 1000 W system.

• At standard 1000 W operation, it still produces strong output (~2,107 µmol/s) with excellent light distribution.

🌟 Advanced Reflector & Heat Management

• Features an Ultra Optics 98 reflector based on the Single Bounce Clear Sight (SBCS) principle, achieving ~98 % reflectivity to maximize light directed toward the canopy and minimize loss.

• The reflector’s open design allows passive cooling of the lamp, reducing heat stress and lowering cooling costs in the grow room.

• A 50 mm socket allows for active air extraction to further manage temperature.

⚙️ Professional-Level Control & Flexibility

• The digital ballast provides multiple dimming levels (from soft-off through 600 W, 700 W, 800 W, 900 W, 1000 W, 1100 W to 1200 W), allowing growers to tailor intensity to the crop’s needs.

• UHF (Ultra High Frequency) technology ensures stable, flicker-free light with high efficiency.

• Can be controlled manually or via the Dimlux Maxi Controller (sold separately) for automated dimming and scheduling.

• Includes a status display and built-in smart ballast features for diagnostics and lamp protection.

📈 Designed for Professional Cultivation

• The MKII version is more efficient, compact, and lighter than previous models, with improved electronics that reduce energy loss and heat generation.

• Ideal for commercial greenhouses, controlled environment agriculture, or high-output indoor grow operations requiring reliable, high-intensity lighting.

• Suitable for use at 240 V and 277 V electrical systems.
