FAQ Section

\n
\n
What environments is the Tornado Fiberglass Exhaust Fan designed for? \n
\n
It is ideal for harsh agricultural and industrial environments such as dairy barns, poultry houses, greenhouses, and all-in/all-out facilities.
\n
\n
\n
Why is the housing made of fiberglass? \n
\n
The molded fiberglass housing is corrosion- and rust-resistant, lightweight, easy to clean, and designed to withstand high-moisture and high-ammonia environments.
\n
\n
\n
Are different shutter options available? \n
\n
Yes, you can choose between poly or aluminum shutters depending on your application.
\n
\n
\n
Can the fan be ordered with a performance cone? \n
\n
Yes, poly performance cones are available on select models to improve airflow efficiency.
\n
\n
\n
What motor options are offered? \n
\n
Models are available with standard enclosed motors or J&D Gold Star IP66-rated motors on select 24\" and 36\" configurations.
\n
\n
\n
Is the fan suitable for continuous operation? \n
\n
Yes, the motors are totally enclosed, maintenance-free, and rated for continuous duty.
\n
\n
\n
How does the slant wall housing benefit performance? \n
\n
The slant wall design improves airflow efficiency and helps reduce debris buildup inside the fan housing.
\n
\n
\n\n
\n

Specifications \"\"\n

\n
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
J&D Manufacturing Tornado Fiberglass Exhaust Fan\"\"
Product NameTornado Fiberglass Exhaust Fan
16\" Poly Shutter Model
SKUVFP16P
Fan Size16\"
Airflow (CFM)2,087
Voltage115/230
PhaseSingle
Amps3.8/1.9A
Hz60 Hz
HP1/3 HP
RPM1,700
MotorStandard, Totally Enclosed
Propeller3-Ply Poly
16\" Aluminum Shutter Model
SKUVFA16P
Fan Size16\"
Airflow (CFM)2,412
Voltage115/230
PhaseSingle
Amps3.8/1.9A
Hz60 Hz
HP1/3 HP
RPM1,700
MotorStandard, Totally Enclosed
Propeller3-Ply Prop
24\" Gold Star Direct Drive (No Cone)
SKUVFA24A-GS
Fan Size24\"
Airflow (CFM)5,339
Voltage115/230
PhaseSingle
Amps5.6/2.8A
Hz60 Hz
HP1/2 HP
RPM1,725
MotorGold Star, Direct Drive
Propeller3-Aluminum Blade
24\" Gold Star Direct Drive (With Cone)
SKUVFA24AC-GS
Fan Size24\"
Airflow (CFM)5,774
Voltage115/230
PhaseSingle
Amps5.6/2.8A
Hz60 Hz
HP1/2 HP
RPM1,725
MotorGold Star, Direct Drive
Propeller3-Aluminum Blade
24\" Gold Star Direct Drive (Poly With Cone)
SKUVFA24PC-GS
Fan Size24\"
Airflow (CFM)6,437
Voltage115/230
PhaseSingle
Amps5.6/2.8A
Hz60 Hz
HP1/2 HP
RPM1,725
MotorGold Star, Direct Drive
Propeller2-Ply Poly
36\" Gold Star Direct Drive (No Cone Nylon)
SKUVFA36N-GS
Fan Size36\"
Airflow (CFM)9,008
Voltage115/230
PhaseSingle
Amps6.1/3.09A
Hz60 Hz
HP1/2 HP
RPM825
MotorGold Star, Direct Drive
Propeller2-Nylon Blade
Spec SheetPDF
Installation InstrutionPDF
\n
\n
\n
\n
\n

What is included? \"\"\n

\n

It includes:

\n
\n
    \n
  • \n\"\" Tornado Fiberglass Exhaust Fan\n
    • \n
  • \n\"\" Rust-free, corrosion-resistant molded fiberglass housing with gel coat\n
    • \n
  • \n\"\" Stainless steel internal frame and hardware for long life\n
    • \n
  • \n\"\" Factory-installed propeller\n
    • \n
  • \n\"\" Belt tensioning system on 50″ belt drive models (where applicable)\n
    • \n
\n
\n
\n
\"\"
\n
\n
\n
\n
\n

Warranty Policy

\n

Please check out the manufcaturers website for Warranty related issues.

\n
\n
\n
\n","image":["https://img.greenthumbdepotonline.shop/images/product/j-d-manufacturing-tornado-fiberglass-exhaust-fan-1.jpg","https://img.greenthumbdepotonline.shop/images/product/j-d-manufacturing-tornado-fiberglass-exhaust-fan-2.jpg"],"sku":"j-d-manufacturing-tornado-fiberglass-exhaust-fan","brand":{"@type":"Brand","name":"Green Thumb Depot"},"offers":{"@type":"AggregateOffer","lowPrice":494.23,"highPrice":2613.81,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://greenthumbdepotonline.shop/products/j-d-manufacturing-tornado-fiberglass-exhaust-fan","offerCount":23}}
J&D Manufacturing Tornado Fiberglass Exhaust Fan
HomeStore

J&D Manufacturing Tornado Fiberglass Exhaust Fan

J&D Manufacturing Tornado Fiberglass Exhaust Fan

Select Select Model
From $494.23
J&D Manufacturing Tornado Fiberglass Exhaust Fan—
$494.23

The Story

J&D Manufacturing Tornado Fiberglass Exhaust Fan

The Tornado exhaust fan is built for harsh agricultural conditions, combining a corrosion-resistant fiberglass housing with gel coat finish and stainless steel internal components for long-term reliability. Designed for all-in, all-out facilities, it delivers strong ventilation with low maintenance and easy cleaning. With a 20-year housing warranty and multiple shutter, cone, and motor options, it’s an ideal choice for demanding dairy, poultry, greenhouse, and industrial applications.

  • Features & Benefits
  • Product Specifications
  • What is included?
  • Warranty Policy

J&D Manufacturing Tornado Fiberglass Exhaust Fan

Designed for corrosive, high-moisture agricultural settings, the Tornado Fiberglass Exhaust Fan delivers dependable ventilation with a rust-free fiberglass housing and stainless steel internal frame for long-term performance. Its slant-wall design supports efficient airflow and easier cleaning, making it ideal for all-in, all-out facilities that demand low maintenance, high reliability, and consistent air exchange in dairy, poultry, greenhouse, and industrial applications.

  • Molded fiberglass housing with gel coat resists corrosion and minimizes dirt buildup.
  • 20-year warranty on the fiberglass housing supports long-term durability expectations.
  • Stainless steel internal frame and hardware help prevent rust in harsh environments.
  • Slant-wall housing improves airflow efficiency for stronger exhaust performance.
  • Optional poly cone and poly or aluminum shutter configurations support site-specific needs.
  • Motor options include standard enclosed motors or select Gold Star IP66-rated models.

High-Durability Ventilation for Harsh Agricultural Environments

The Tornado Fiberglass Exhaust Fan is built for operations that require powerful, corrosion-resistant airflow in demanding conditions. Its fiberglass housing, stainless steel components, and efficient slant-wall design ensure dependable ventilation while helping maintain healthier air quality throughout the facility.

Why J&D Manufacturing?

J&D Manufacturing, founded in 1981 in Eau Claire, WI, is a family-owned company specializing in high-performance, high-efficiency ventilation and comfort solutions for agriculture. Partnering with dairy, poultry, swine, and other producers, J&D delivers American-made systems that improve animal comfort, reduce costs, and boost productivity, all while supporting the evolving needs of modern farming across the U.S. and worldwide.

Why Buy From Us?

At GreenThumbDepot, you're not just another sale to a faceless corporation. You're partnering with a team genuinely invested in your success. Our legendary customer service, combined with a promise of unbeatable prices, sets us apart. We're here for you, always.

Excellent 4.8 out of 5 based on 1,247 reviews
If I could rate 6 stars I would!
If I could rate 6 stars I would! My representative Edouard B. has been shockingly responsive! Like - oh my god - an actual SERVICE oriented company. He's dug into my odd connectivity issues I've been having - and following up in an AMAZINGLY timey manner. No shit. You'll be impressed! (And the price was also unbeatable, quick shipping...it's all PERFECT). Thank you Ed!!
Jim D

Customer service was outstanding great…
Customer service was outstanding great people to deal with they understand your needs and they will do their best to fulfill them there is no way I can complain about them because they are the best help out there.Thanks green thumb depot. I'll definitely order from them again
Glenn Appleton

The machine is doing just what my…
The machine is doing just what my salesman told it would do (I appreciate you Ed thank you) . The machine is what we need for our new business we're starting up, soon to be llc and licensed. We are getting a lot of clients wanting our services. Ed I will be needing more of your products, thank you again.
Freddie

Fantastic
Great prices, fantastic customer service, and mind blowing shipping! Incredible. Will be using again and telling anyone in need.
Kar

←
→

FAQ Section

What environments is the Tornado Fiberglass Exhaust Fan designed for?
It is ideal for harsh agricultural and industrial environments such as dairy barns, poultry houses, greenhouses, and all-in/all-out facilities.
Why is the housing made of fiberglass?
The molded fiberglass housing is corrosion- and rust-resistant, lightweight, easy to clean, and designed to withstand high-moisture and high-ammonia environments.
Are different shutter options available?
Yes, you can choose between poly or aluminum shutters depending on your application.
Can the fan be ordered with a performance cone?
Yes, poly performance cones are available on select models to improve airflow efficiency.
What motor options are offered?
Models are available with standard enclosed motors or J&D Gold Star IP66-rated motors on select 24" and 36" configurations.
Is the fan suitable for continuous operation?
Yes, the motors are totally enclosed, maintenance-free, and rated for continuous duty.
How does the slant wall housing benefit performance?
The slant wall design improves airflow efficiency and helps reduce debris buildup inside the fan housing.

Specifications

J&D Manufacturing Tornado Fiberglass Exhaust Fan
Product Name Tornado Fiberglass Exhaust Fan
16" Poly Shutter Model
SKU VFP16P
Fan Size 16"
Airflow (CFM) 2,087
Voltage 115/230
Phase Single
Amps 3.8/1.9A
Hz 60 Hz
HP 1/3 HP
RPM 1,700
Motor Standard, Totally Enclosed
Propeller 3-Ply Poly
16" Aluminum Shutter Model
SKU VFA16P
Fan Size 16"
Airflow (CFM) 2,412
Voltage 115/230
Phase Single
Amps 3.8/1.9A
Hz 60 Hz
HP 1/3 HP
RPM 1,700
Motor Standard, Totally Enclosed
Propeller 3-Ply Prop
24" Gold Star Direct Drive (No Cone)
SKU VFA24A-GS
Fan Size 24"
Airflow (CFM) 5,339
Voltage 115/230
Phase Single
Amps 5.6/2.8A
Hz 60 Hz
HP 1/2 HP
RPM 1,725
Motor Gold Star, Direct Drive
Propeller 3-Aluminum Blade
24" Gold Star Direct Drive (With Cone)
SKU VFA24AC-GS
Fan Size 24"
Airflow (CFM) 5,774
Voltage 115/230
Phase Single
Amps 5.6/2.8A
Hz 60 Hz
HP 1/2 HP
RPM 1,725
Motor Gold Star, Direct Drive
Propeller 3-Aluminum Blade
24" Gold Star Direct Drive (Poly With Cone)
SKU VFA24PC-GS
Fan Size 24"
Airflow (CFM) 6,437
Voltage 115/230
Phase Single
Amps 5.6/2.8A
Hz 60 Hz
HP 1/2 HP
RPM 1,725
Motor Gold Star, Direct Drive
Propeller 2-Ply Poly
36" Gold Star Direct Drive (No Cone Nylon)
SKU VFA36N-GS
Fan Size 36"
Airflow (CFM) 9,008
Voltage 115/230
Phase Single
Amps 6.1/3.09A
Hz 60 Hz
HP 1/2 HP
RPM 825
Motor Gold Star, Direct Drive
Propeller 2-Nylon Blade
Spec Sheet PDF
Installation Instrution PDF

What is included?

It includes:

  • Tornado Fiberglass Exhaust Fan
  • Rust-free, corrosion-resistant molded fiberglass housing with gel coat
  • Stainless steel internal frame and hardware for long life
  • Factory-installed propeller
  • Belt tensioning system on 50″ belt drive models (where applicable)

Warranty Policy

Please check out the manufcaturers website for Warranty related issues.

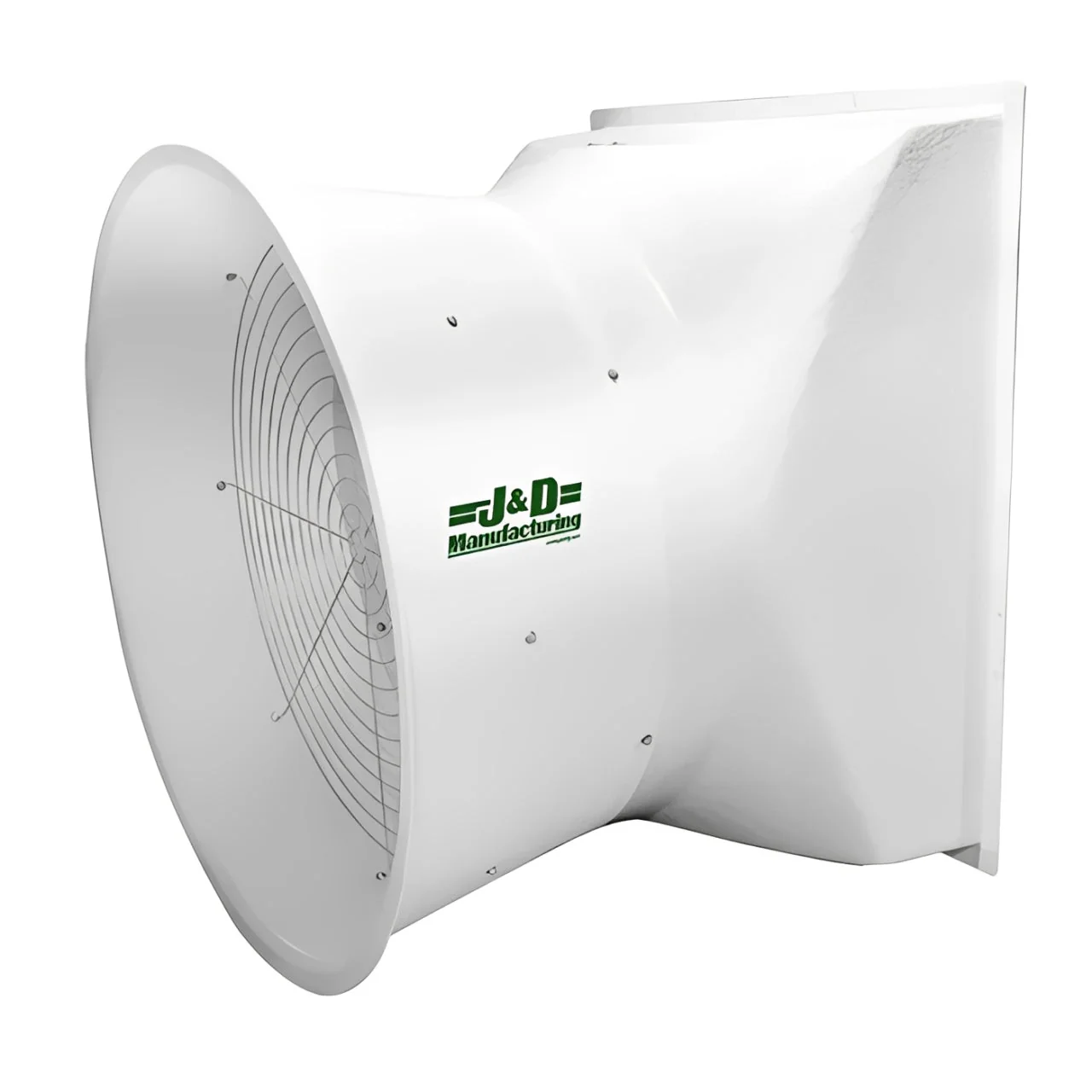

J&D Manufacturing Tornado Fiberglass Exhaust Fan - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

J&D Manufacturing Tornado Fiberglass Exhaust Fan

The Tornado exhaust fan is built for harsh agricultural conditions, combining a corrosion-resistant fiberglass housing with gel coat finish and stainless steel internal components for long-term reliability. Designed for all-in, all-out facilities, it delivers strong ventilation with low maintenance and easy cleaning. With a 20-year housing warranty and multiple shutter, cone, and motor options, it’s an ideal choice for demanding dairy, poultry, greenhouse, and industrial applications.

  • Features & Benefits
  • Product Specifications
  • What is included?
  • Warranty Policy

J&D Manufacturing Tornado Fiberglass Exhaust Fan

Designed for corrosive, high-moisture agricultural settings, the Tornado Fiberglass Exhaust Fan delivers dependable ventilation with a rust-free fiberglass housing and stainless steel internal frame for long-term performance. Its slant-wall design supports efficient airflow and easier cleaning, making it ideal for all-in, all-out facilities that demand low maintenance, high reliability, and consistent air exchange in dairy, poultry, greenhouse, and industrial applications.

  • Molded fiberglass housing with gel coat resists corrosion and minimizes dirt buildup.
  • 20-year warranty on the fiberglass housing supports long-term durability expectations.
  • Stainless steel internal frame and hardware help prevent rust in harsh environments.
  • Slant-wall housing improves airflow efficiency for stronger exhaust performance.
  • Optional poly cone and poly or aluminum shutter configurations support site-specific needs.
  • Motor options include standard enclosed motors or select Gold Star IP66-rated models.

High-Durability Ventilation for Harsh Agricultural Environments

The Tornado Fiberglass Exhaust Fan is built for operations that require powerful, corrosion-resistant airflow in demanding conditions. Its fiberglass housing, stainless steel components, and efficient slant-wall design ensure dependable ventilation while helping maintain healthier air quality throughout the facility.

Why J&D Manufacturing?

J&D Manufacturing, founded in 1981 in Eau Claire, WI, is a family-owned company specializing in high-performance, high-efficiency ventilation and comfort solutions for agriculture. Partnering with dairy, poultry, swine, and other producers, J&D delivers American-made systems that improve animal comfort, reduce costs, and boost productivity, all while supporting the evolving needs of modern farming across the U.S. and worldwide.

Why Buy From Us?

At GreenThumbDepot, you're not just another sale to a faceless corporation. You're partnering with a team genuinely invested in your success. Our legendary customer service, combined with a promise of unbeatable prices, sets us apart. We're here for you, always.

Excellent 4.8 out of 5 based on 1,247 reviews
If I could rate 6 stars I would!
If I could rate 6 stars I would! My representative Edouard B. has been shockingly responsive! Like - oh my god - an actual SERVICE oriented company. He's dug into my odd connectivity issues I've been having - and following up in an AMAZINGLY timey manner. No shit. You'll be impressed! (And the price was also unbeatable, quick shipping...it's all PERFECT). Thank you Ed!!
Jim D

Customer service was outstanding great…
Customer service was outstanding great people to deal with they understand your needs and they will do their best to fulfill them there is no way I can complain about them because they are the best help out there.Thanks green thumb depot. I'll definitely order from them again
Glenn Appleton

The machine is doing just what my…
The machine is doing just what my salesman told it would do (I appreciate you Ed thank you) . The machine is what we need for our new business we're starting up, soon to be llc and licensed. We are getting a lot of clients wanting our services. Ed I will be needing more of your products, thank you again.
Freddie

Fantastic
Great prices, fantastic customer service, and mind blowing shipping! Incredible. Will be using again and telling anyone in need.
Kar

←
→

FAQ Section

What environments is the Tornado Fiberglass Exhaust Fan designed for?
It is ideal for harsh agricultural and industrial environments such as dairy barns, poultry houses, greenhouses, and all-in/all-out facilities.
Why is the housing made of fiberglass?
The molded fiberglass housing is corrosion- and rust-resistant, lightweight, easy to clean, and designed to withstand high-moisture and high-ammonia environments.
Are different shutter options available?
Yes, you can choose between poly or aluminum shutters depending on your application.
Can the fan be ordered with a performance cone?
Yes, poly performance cones are available on select models to improve airflow efficiency.
What motor options are offered?
Models are available with standard enclosed motors or J&D Gold Star IP66-rated motors on select 24" and 36" configurations.
Is the fan suitable for continuous operation?
Yes, the motors are totally enclosed, maintenance-free, and rated for continuous duty.
How does the slant wall housing benefit performance?
The slant wall design improves airflow efficiency and helps reduce debris buildup inside the fan housing.

Specifications

J&D Manufacturing Tornado Fiberglass Exhaust Fan
Product Name Tornado Fiberglass Exhaust Fan
16" Poly Shutter Model
SKU VFP16P
Fan Size 16"
Airflow (CFM) 2,087
Voltage 115/230
Phase Single
Amps 3.8/1.9A
Hz 60 Hz
HP 1/3 HP
RPM 1,700
Motor Standard, Totally Enclosed
Propeller 3-Ply Poly
16" Aluminum Shutter Model
SKU VFA16P
Fan Size 16"
Airflow (CFM) 2,412
Voltage 115/230
Phase Single
Amps 3.8/1.9A
Hz 60 Hz
HP 1/3 HP
RPM 1,700
Motor Standard, Totally Enclosed
Propeller 3-Ply Prop
24" Gold Star Direct Drive (No Cone)
SKU VFA24A-GS
Fan Size 24"
Airflow (CFM) 5,339
Voltage 115/230
Phase Single
Amps 5.6/2.8A
Hz 60 Hz
HP 1/2 HP
RPM 1,725
Motor Gold Star, Direct Drive
Propeller 3-Aluminum Blade
24" Gold Star Direct Drive (With Cone)
SKU VFA24AC-GS
Fan Size 24"
Airflow (CFM) 5,774
Voltage 115/230
Phase Single
Amps 5.6/2.8A
Hz 60 Hz
HP 1/2 HP
RPM 1,725
Motor Gold Star, Direct Drive
Propeller 3-Aluminum Blade
24" Gold Star Direct Drive (Poly With Cone)
SKU VFA24PC-GS
Fan Size 24"
Airflow (CFM) 6,437
Voltage 115/230
Phase Single
Amps 5.6/2.8A
Hz 60 Hz
HP 1/2 HP
RPM 1,725
Motor Gold Star, Direct Drive
Propeller 2-Ply Poly
36" Gold Star Direct Drive (No Cone Nylon)
SKU VFA36N-GS
Fan Size 36"
Airflow (CFM) 9,008
Voltage 115/230
Phase Single
Amps 6.1/3.09A
Hz 60 Hz
HP 1/2 HP
RPM 825
Motor Gold Star, Direct Drive
Propeller 2-Nylon Blade
Spec Sheet PDF
Installation Instrution PDF

What is included?

It includes:

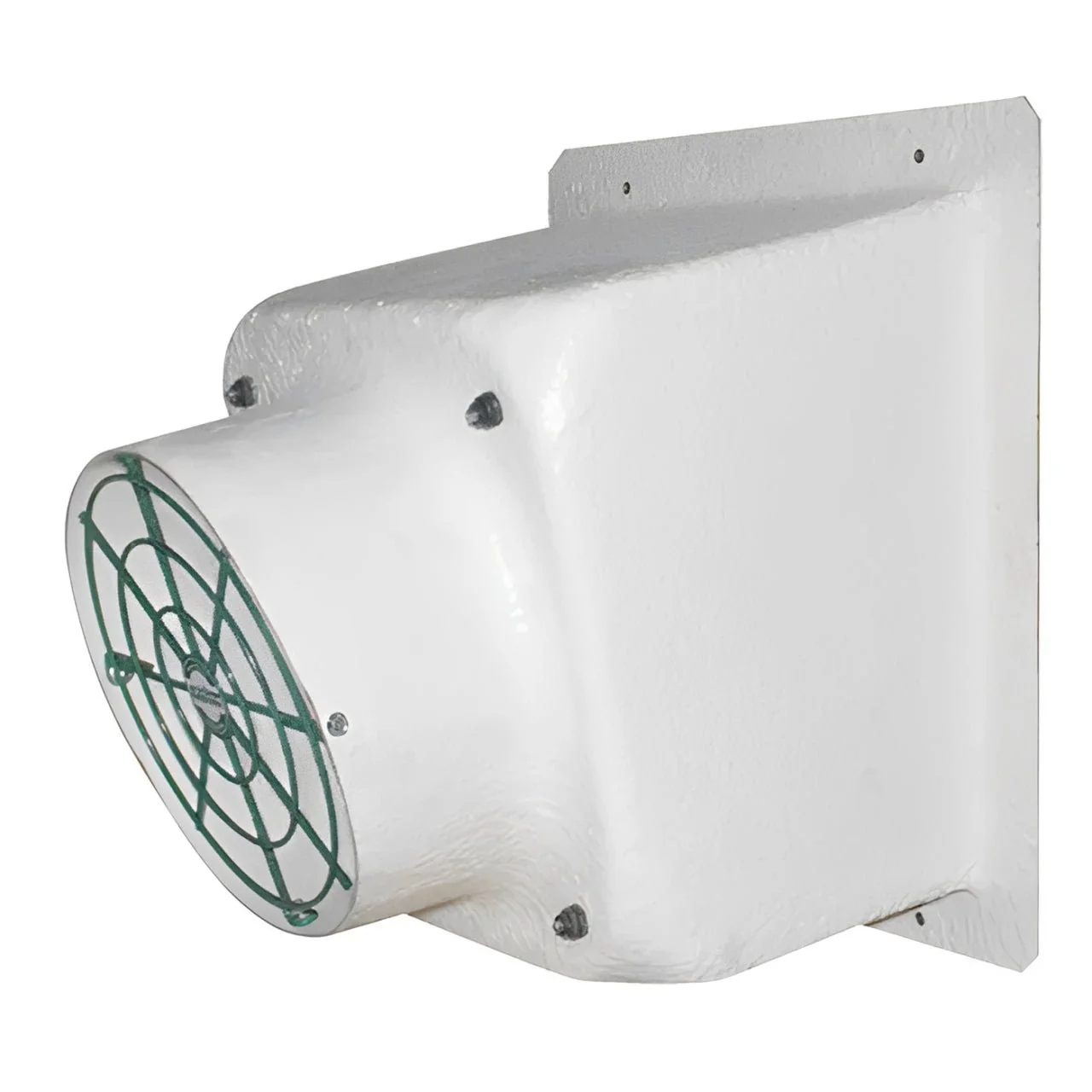

  • Tornado Fiberglass Exhaust Fan
  • Rust-free, corrosion-resistant molded fiberglass housing with gel coat
  • Stainless steel internal frame and hardware for long life
  • Factory-installed propeller
  • Belt tensioning system on 50″ belt drive models (where applicable)

Warranty Policy

Please check out the manufcaturers website for Warranty related issues.

J&D Manufacturing Tornado Fiberglass Exhaust Fan | Green Thumb Depot
